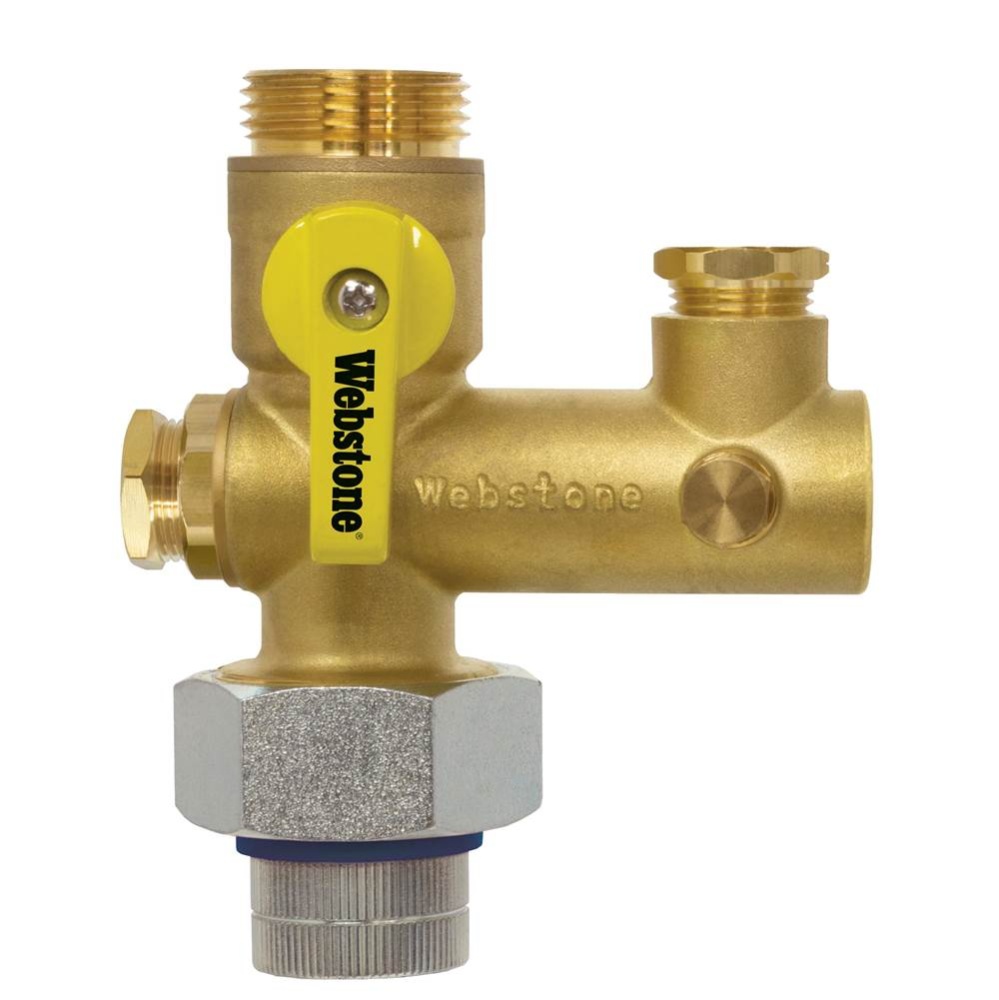

3/4 Du-Wh Supply Vlv (H-G1663W)
by Nibco
The G-Series is your one solution for any installation. Combine bodies and fittings for a completely custom configuration. Mix and match end connections to connect different piping types and sizes, right at the valve. Save space in the field and in the truck with a limited inventory that can complete virtually any job. G-Series unions feature a non-piloting design and an EPDM gasket seal for easy installation and removal. The G-Series Water Heater Supply Valve combines multiple components into a single, forged DZR brass solution to upgrade your next water heater installation. Designed for use wi
Product Specification
Item #
H-G1663W
Dimensions
Additional product details
Vendor Item #
H-G1663W
AltImageName1
/NBC/High_Res_RGB_JPG-H-G166W.jpg
AltImageName2
/NBC/webimage-H-G166W.jpg
AltImageName3
/NBC/webimage-H-G166W.jpg
AltImageName4
/NBC/thul-H-G166W.jpg
AltImageName5
/NBC/thul-H-G166W.jpg
AltImagePath1
/NBC-High_Res_RGB_JPG-H-G166W.JPEG
AltImagePath2
/NBC-webimage-H-G166W.JPEG
AltImagePath3
/NBC-webimage-H-G166W.JPEG
AltImagePath4
/NBC-thul-H-G166W.JPEG
AltImagePath5
/NBC-thul-H-G166W.JPEG
Bullet10
This valve is actuated by a blowout proof stem.
Bullet11
Double O-ring Stem Seals
Bullet12
Models available to satisfy all state and federal low-lead laws
Bullet13
Patents Pending
Bullet14
Available in FIP Union x GMT
Bullet15
Certified to NSF/ANSI/CAN 61 & 372
Bullet5
1/2'' FIP port for installation of vacuum relief valve and 1/8'' plugged gauge port
Bullet6
Includes support hardware
Bullet7
Expansion tank service version available if required
Bullet8
G-Series Connections Allow for Multiple Options to Customize the Sizes and Styles Desired for Your Installation
Bullet9
Saves Time, Replaces Components, Eliminates Leakpaths
Country
China
Description
G-Series Dielectric Water Heater Supply Valve, w/ Expansion Tank Service, Full Port DZR Brass Ball w/ Dielectric Union End, w/ 3/4 Expansion Tank Port and Hi-Flow Hose Drain, (3) Plugged FIP Ports (1/2'', 1/2'' and 1/8''), Requires
Height
2.72
Install Link
Length
5.43
Material
LF DZR Brass
Minimum Order Quantity
1
Prop65
This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Ship Weight
2.03
Shipping Height
2.72
Shipping Length
5.43
Shipping Width
4.13
Spec Sheet
UOM
Each
Weight
1.78
Width
4.13
Manufactured By
Nibco
Call for Price
BASE PRICE:
$
107
30
/
/ 1
($107.30 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer availability unknown.
